Author: Ghanashyam

A 15 kVA single-phase alternator is used when applications require a relatively high-capacity AC supply on single-phase power. These alternators are commonly used in backup power systems, workshops, agricultural setups, construction applications, temporary installations, and diesel generator assemblies.

The important part is that a 15 kVA alternator is only the electrical generating component. It needs a suitable prime mover, such as a diesel engine, to rotate the alternator and produce electricity.

If you are comparing a 15 kVA single-phase alternator in India, price alone should not decide the purchase. Voltage, speed, winding material, excitation/AVR arrangement, bearing configuration, insulation class and compatibility with the engine all matter.

15 KVA Single-Phase Alternator Price in India

Current Indian listings show a fairly wide price range. Some locally manufactured or supplier-listed 15 kVA alternators are advertised around ₹35,000–₹48,000, while a branded MNE unit is currently listed at ₹49,559 including taxes. Another supplier lists it at ₹65,000. Treat these prices as listed prices rather than a universal market price.

The final amount can change based on GST, transport, configuration, mounting arrangement, bearing type, AVR, winding construction, and the seller’s quotation.

Product	Phase	Voltage	Speed	Listed price
KOEL KSA.1754.10.0.00	Single	160–240 V	1500 RPM	Quote required
MNE AE41E	Single	220–240 V	Not verified	₹49,559 incl. tax
Chandra 15 KVA	Single	230 V	1500 RPM	₹48,000
Power Care 15 KVA	Single	420 V Listed	Not verified	₹65,000
Superking 15 KVA	Single	415 V listed	Not verified	Approx. ₹35,000

KOEL KSA.1754.10.0.00 — 15 KVA Single-Phase Alternator

The KOEL KSA.1754.10.0.00 is one of the better-documented options in this category because its specifications are available directly from the manufacturer.

KOEL specifies a 15 kVA rating, 1500 RPM speed and single-phase operation. Its voltage range is 160–240 V, and the listed power factor is 0.8. The alternator uses a copper winding and cast-iron body, with an SS410 shaft.

For a buyer who wants manufacturer documentation rather than relying entirely on a marketplace listing, the KOEL model is worth investigating.

The official page does not list a retail price, so you’ll need a current dealer quotation.

Key specifications:-

• Rated power: 15 kVA
• Phase: Single phase
• Voltage range: 160–240 V
• Speed: 1500 RPM
• Power factor: 0.8
• Winding: Copper
• Body: Cast iron

---

MNE AE41E — 15 KVA Brushless Alternator

IndustryBuying currently lists the MNE AE41E as a 15 kVA, single-phase, two-bearing brushless alternator. The listed voltage is 220–240 V, making it more directly comparable with conventional Indian single-phase systems than listings specifying 415 V. At the time of research, Industry.

Buying displayed a price of ₹49,559 including taxes, with a pre-tax price of ₹41,999 plus 18% GST. The two-bearing configuration is another point to check when comparing alternators. However, bearing arrangement by itself should not be treated as a complete measure of product quality.

Engine compatibility, shaft dimensions, mounting arrangement and electrical specifications still need to be checked. For buyers looking for a 15 kVA unit with a clearly listed 220–240 V output and brushless construction, the AE41E is a practical model to investigate.

Key specifications:-

• Model: AE41E
• Rated power: 15 kVA
• Phase: Single phase
• Voltage: 220–240 V
• Type: Brushless
• Bearings: Two
• Listed price: ₹49,559

---

Chandra 15 KVA Single-Phase Alternator

Chandra Agriculture Industries lists a 15 kVA single-phase alternator at ₹48,000 per piece.

The published specifications include 230 V output, 1500 RPM speed, Class H insulation and base mounting. The product is listed for household and tent-decoration applications, but confirm suitability for a particular installation based on the actual load and operating conditions.

A separate Chandra catalogue provides additional information on its 15–30 kVA single-phase range, including 1500 RPM operation, 220–240 V output, copper insulation, and transformer/AVR-type construction. The model therefore provides a useful reference point for buyers comparing locally manufactured alternators in the roughly ₹40,000–₹50,000 price bracket.

Key specifications:-

• Rated power: 15 kVA
• Voltage: 230 V
• Speed: 1500
• RPM- Phase: Single phase
• Mounting: Base mounted
• Insulation: Class H
• Listed price: ₹48,000

---

Other 15 KVA Alternators in the Indian Market

Several other supplier listings for 15 kVA single-phase alternators appear. Power Care, for example, lists a 15 kVA AC alternator at ₹65,000. However, the listing specifies 420 V while identifying the product as single-phase.

Confirm that combination with the seller before purchase, because voltage configuration is one of the first things that must match the intended electrical system. Superking also lists a 15 kVA single-phase AC alternator at approximately ₹35,000.

Its listing gives 415 V and an industrial application, so the buyer should similarly confirm the actual winding and output configuration. These examples show why a low advertised price does not necessarily mean that two 15 kVA alternators are directly interchangeable.

---

What Does 15 KVA Actually Mean?

The “15 kVA” rating describes the alternator’s apparent power capacity. It should not automatically be interpreted as 15 kW of usable real power. For example, at a power factor of 0.8:15 kVA × 0.8 = 12 kW. So, an alternator operating at a power factor of 0.8 corresponds to approximately 12 kW of real power.

The actual load that can be connected depends on the alternator’s rating, power factor, engine capacity, operating conditions and the characteristics of the connected equipment.

At 230 V, a 15 kVA single-phase alternator corresponds to roughly 65 A at unity power factor. At 0.8 power factor, the current associated with 15 kVA would be about 87 A. Always check the exact operating current against the manufacturer’s electrical specifications. Things to Check Before Buying a 15 KVA Alternator

1. Output voltage – For a typical Indian single-phase installation, 230–240 V is a common requirement. Don’t assume every “single-phase 15 kVA” listing has the same voltage. Some current listings show 415 V or 420 V, so confirm the output configuration before placing an order.

2. Engine compatibility – If the alternator is being purchased separately for a diesel generator, check the engine’s rated speed, available shaft power, coupling arrangement and mounting dimensions. A 1500 RPM alternator, for example, needs to be coupled to a suitable prime mover operating at the required speed.

3. AVR and voltage regulation – An automatic voltage regulator can help maintain output voltage as the electrical load changes. Check whether the particular model uses an AVR, transformer excitation or another regulation arrangement.

4. Winding material – Copper windings are commonly specified in the Indian products researched for this article. However, “copper winding” should not be the only purchasing criterion. The insulation system, thermal rating, construction quality and manufacturer documentation also matter.

5. Bearing arrangement – Alternators may be available with one or two bearings depending on their construction and coupling arrangement. Make sure the bearing and shaft configuration matches the intended engine or prime mover.

6. Insulation class – Insulation class provides information about the thermal capability of the winding insulation system. For example, the Chandra listing specifies Class H insulation.

7. Service and spare parts – For a generator used regularly in a business, workshop or commercial installation, local service availability can matter as much as the initial purchase price. Ask the supplier about bearings, AVR components, rectifiers and other replacement parts before finalising the purchase.

---

Which 15 KVA Alternator Should You Consider?

There is no single universal choice because the appropriate alternator depends on the installation.

The KOEL KSA.1754.10.0.00 is worth considering when manufacturer documentation and a clearly specified 15 kVA/1500 RPM single-phase configuration are priorities.

The MNE AE41E is an option for buyers looking for a currently listed 220–240 V brushless unit with two bearings. Its ₹49,559 tax-inclusive listing also gives a useful current price reference.

The Chandra 15 KVA is another locally listed option, with 230 V, 1500 RPM and Class H insulation specified and a listed price of ₹48,000. Lower-priced listings such as the Superking model can be worth investigating when budget is important, but confirm the exact voltage and winding configuration before comparing them directly with 230 V models.

In other words, compare the complete specification, not just the ₹/kVA figure. Common Applications: A 15 kVA single-phase alternator can be considered for applications such as:

• Backup power systems
• Workshops
• Agricultural installations
• Temporary construction power
• Event and tent
• decoration setups
• Small commercial installations
• Generator sets requiring single-phase output

The suitability depends on the actual connected load and the characteristics of the prime mover.

Frequently Asked Questions

Is a 15 kVA alternator the same as a 15 kW alternator?

No. kVA measures apparent power, while kW measures real power. At a power factor of 0.8, 15 kVA corresponds to 12 kW of real power.

What voltage does a 15 kVA single-phase alternator produce?

It depends on the model. Current Indian listings include models specified around 220–240 V, while some listings show 415 V or 420 V. Always confirm the manufacturer’s output specification before buying.

What is the price of a 15 kVA single-phase alternator in India?

Current listings researched for this article range from approximately ₹35,000 to ₹65,000, while some branded models are available only on quotation. The final price depends on the manufacturer, configuration, GST, transport and supplier.

Is 1500 RPM common for a 15 kVA alternator?

Yes. Several 15 kVA single-phase models researched here are specified at 1500 RPM, including the KOEL model and Chandra’s 15 kVA unit.

Can a 15 kVA alternator be connected to any diesel engine?

No. The engine must have sufficient power and the correct rated speed, shaft/coupling arrangement and mounting configuration. Select the alternator and prime mover as a compatible set.

Should I buy based only on the lowest price?

No. Check voltage, frequency, RPM, power factor, winding, insulation, bearing configuration, AVR arrangement, dimensions, warranty and after-sales support along with the price.

Conclusion

The current Indian market for 15 kVA single-phase alternators includes both locally manufactured units and more established branded options. Based on the listings researched, buyers can currently expect prices from around ₹35,000 to ₹65,000, although quotation-based products can fall outside that range.

The most important comparison isn’t simply price. Compare a 230 V single-phase alternator intended for a conventional Indian application with another unit that meets the same electrical requirements.

The prime mover, RPM, power factor, voltage regulation, winding and mounting arrangement must also be compatible. Before placing an order, ask the supplier for the latest datasheet, exact model number, output voltage, rated current, RPM, winding details, AVR information, dimensions, warranty and GST-inclusive quotation. That small amount of checking can prevent an expensive mismatch later.

An automatic gate motor with remote control can make a large entrance gate much easier to operate. Instead of getting out of the vehicle to open a sliding gate manually, users can operate the gate with a remote transmitter.

Depending on the automation system, you can also integrate additional controls such as mobile apps, photocells, wall switches, and access-control systems.

For this comparison, we focus on automatic sliding gate motors available in the Indian market. The three products covered here are:

• STANSV 250W DC Sliding Gate Motor
• FAAC 740 E Z16
• Nice Robus 400.

The selection is based on manufacturer specifications, remote-control capability, Indian availability or listings, gate capacity, and currently published pricing. These products are presented as options for different requirements rather than an objective, universal ranking.

---

Quick Comparison: Gate Motors With Remote

Product	Motor / Supply	Gate Capacity	Protection	Remote Control	Listed Price in India
STANSV 250W DC	24V DC, 250W	Up to 600 kg	IP44	2 remotes included	₹28,000
FAAC 740 E Z16	220 V – 240 V AC, 350W	Up to 500 kg	IP44	Available with radio kit	₹56,640
Nice Robus 400	24V DC, 330W	Up to 400 kg	IP44	Available with complete kits	₹40,000–₹70,000

---

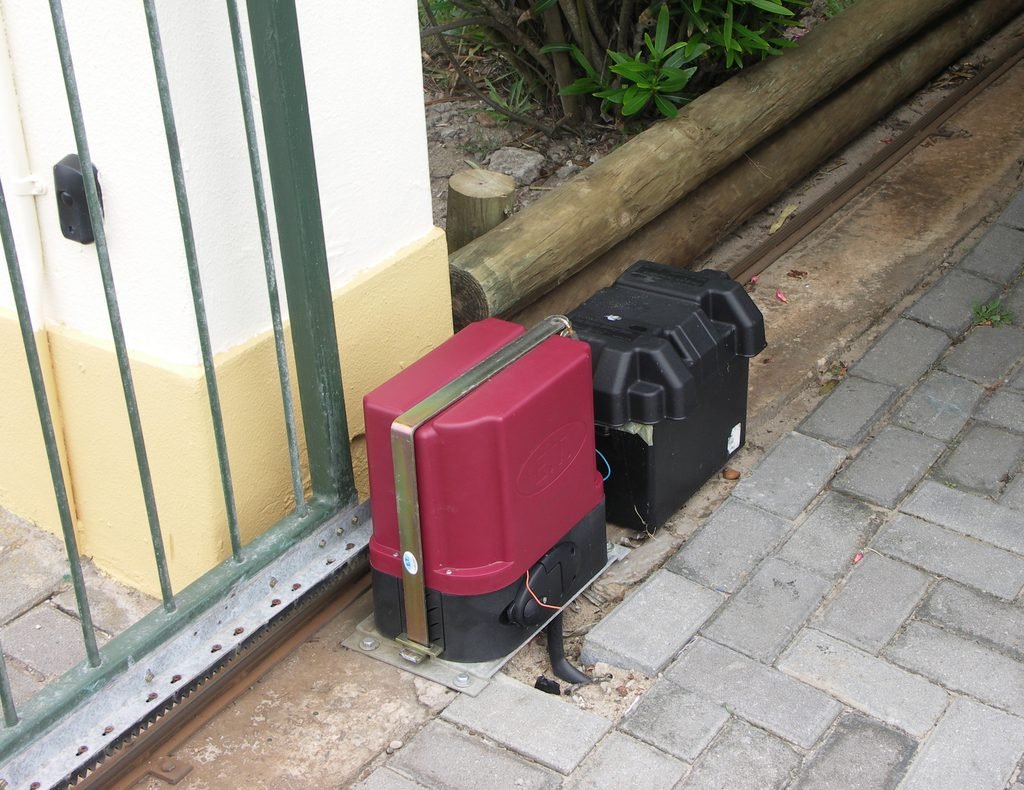

1. STANSV Sliding Gate Motor — 250W DC

The STANSV 250W DC sliding gate motor is a comparatively modern option for residential sliding gates. The manufacturer’s current listing specifies a 24V DC gear motor rated at 250W, with a rated torque of 8 N·m and a no-load speed of 300 RPM.

The stated maximum gate weight is 600 kg, although the actual suitability of a particular installation also depends on the gate’s mechanical condition, length, wheels, alignment, and operating frequency.

One useful feature is the combination of Wi-Fi app control and two included remote controls. You can operate the system through the STANSV application, while the supplied remotes provide a more conventional way to open the gate from a vehicle.

The manufacturer specifies an IP44 protection class, a working temperature range of -20°C to +60°C, and a noise level below 55 dB. It also uses magnetic/mechanical limit-switch arrangements.

The listed price is ₹28,000, before any applicable GST or additional installation-related charges. STANSV states that its automation packages include two remote controls and a one-year warranty covering manufacturing defects, subject to its stated warranty conditions.

Who should consider it?

This option is worth investigating if you want a sliding gate motor with both remote and smartphone control, particularly for a residential installation where app-based access is useful.

---

2. FAAC 740 E Z16

FAAC’s 740 series is an established electro-mechanical sliding-gate operator designed for residential vehicle access. The 740 E Z16 version is specified for gates weighing up to 500 kg.

According to FAAC’s published specifications, the operator consumes 350W, operates from a 230V supply, and provides a maximum gate speed of approximately 12 meters per minute. The motor rotates at 1400 RPM and provides a specified thrust force of 450N. Its enclosure has an IP44 protection rating.

The 740 also has an integrated encoder that can assist with obstacle detection and controlled slowdown. A manual release mechanism lets you operate the gate manually during a power failure.

There is an important distinction when buying this model: the motor/operator itself is not necessarily the same thing as a complete remote-control kit. FAAC automation packages can include a radio receiver and remote transmitters. One documented FAAC 740 kit, for example, includes a receiver and two XT2 433 SLH LR transmitters along with photocells and a flashing light.

An Indian listing currently shows the FAAC 740 at ₹46,000. Because accessory packages differ, buyers should ask the seller specifically whether the quotation includes the receiver, remotes, rack, photocells, and installation.

Who should consider it?

The 740 is a practical model to consider for a residential sliding gate up to 500 kg, especially if you want a conventional, established gate-automation setup rather than buying a motor and adding accessories later.

---

3. Nice Robus 400

The Nice Robus 400 is another 24V sliding-gate operator intended for gates up to 400 kg. Published specifications for the Robus 400 give a motor power figure of 250W, a maximum speed of around 34 cm/s, a force rating of 400 N, and IP44 protection.

The Robus platform is designed to work with Nice’s gate-control accessories, including radio receivers and remote transmitters. Complete kits are sold with combinations of remotes, photocells, flashing lights and gate racks. A documented Robus 400 kit, for example, includes two four-button remote controls, four meters of zinc-coated rack, a flashing lamp and photocells.

Nice has also continued developing its Robus line, including newer versions with connectivity and smart-home integration. However, buyers should check the exact model number and generation before comparing specifications because different Robus versions and kits can have different features.

For India, one current listing quotes ₹40,000–₹70,000 per unit for the Robus 400. Another Indian price guide lists the model around ₹38,000, showing that dealer pricing varies.

Who should consider it?

The Robus 400 is worth considering for a residential or light-commercial sliding gate up to 400 kg, especially if you want access to the wider Nice automation ecosystem.

---

Things to Consider Before Buying a Gate Motor With Remote

The maximum gate weight listed in a product specification should not be the only factor you use to select a motor.

1. Gate weight and mechanical condition

First, estimate the gate’s weight. More importantly, check whether the gate moves freely on its rollers or track.

A poorly aligned 300 kg gate can place more strain on a motor than a correctly installed heavier gate.

2. Sliding or swing gate

Sliding and swing gates require completely different automation mechanisms. This article covers sliding-gate operators.

For a swing gate, you normally need linear, articulated-arm, or underground swing-gate operators instead.

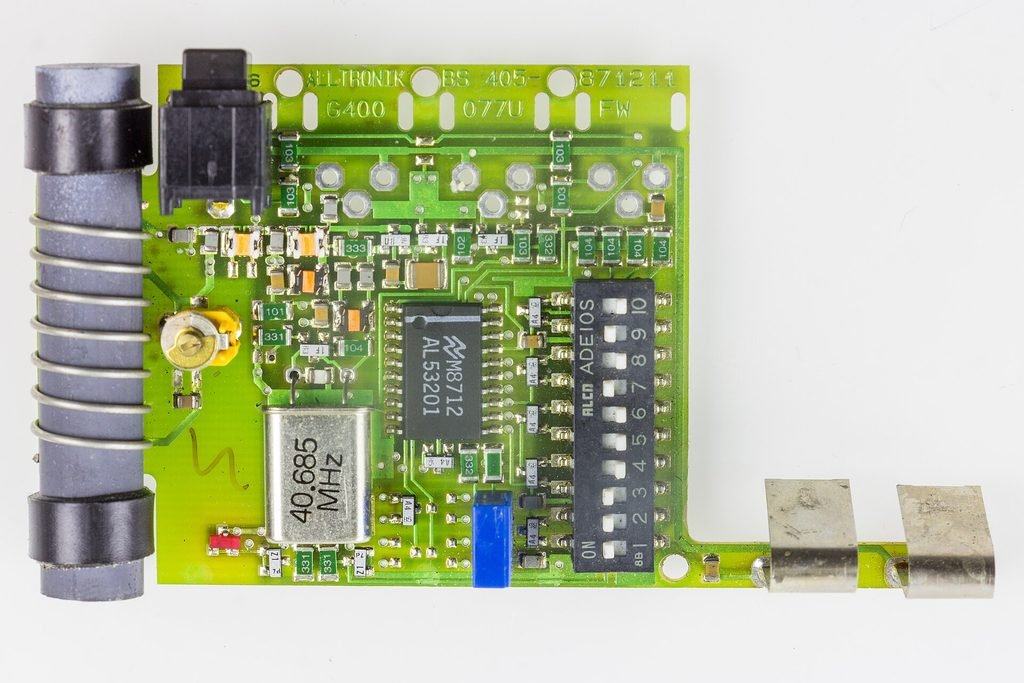

3. Remote controls

Check exactly what the quotation includes.

Some sellers quote only the motor and control board, while others sell a complete package containing:

• Motor
• Control board
• Radio receiver
• Two remote controls
• Gear rack
• Photocells
• Flashing lamp
• Mounting hardware

This distinction can significantly affect the final installation cost.

4. Safety sensors

Photocells are particularly useful for vehicle gates. They can detect an obstruction in the gate’s path and allow the control system to stop or reverse movement depending on the configuration.

Do not treat the remote control itself as a safety system.

5. Power-cut operation

Ask whether the system supports a battery backup or manual release.

Even if battery backup is not required, a manual release mechanism is useful because it lets you move the gate manually when electrical power is unavailable.

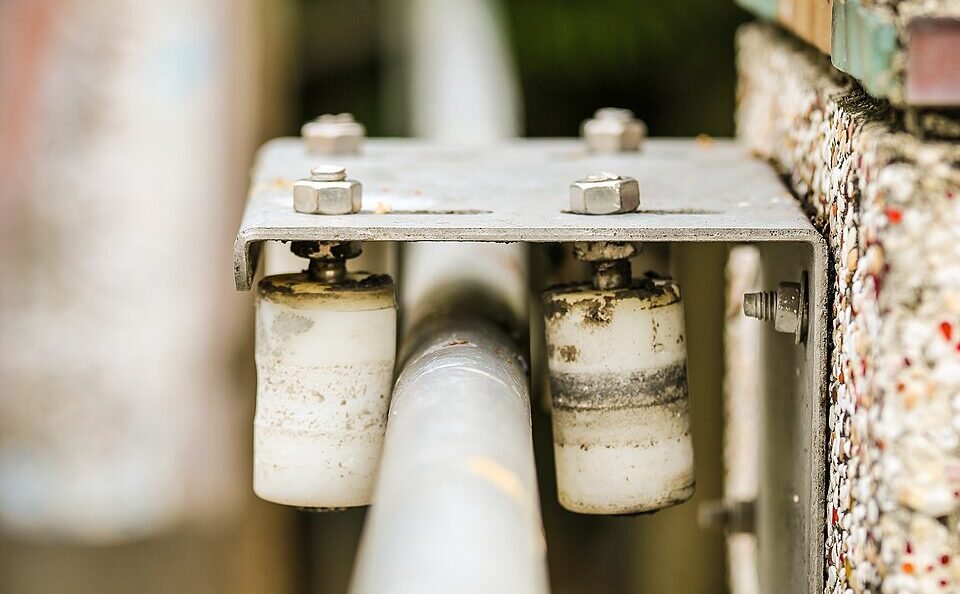

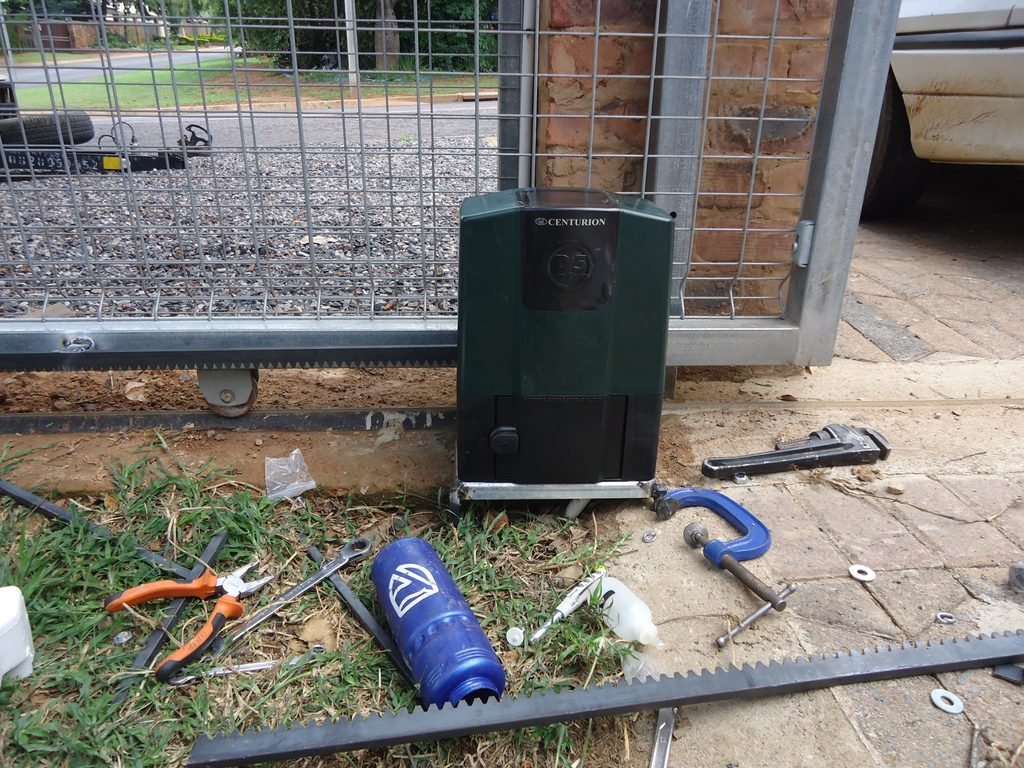

6. Installation and gate alignment

Automatic gate motors are not simply plug-and-play appliances.

The rack, motor position, gate wheels, track, limit switches, and control system need to be correctly aligned. If the existing gate has excessive friction or mechanical problems, installing a more powerful motor may not solve the underlying issue.

How to Choose the Right Gate Motor

For a typical house gate, start with four questions:

How heavy is the gate?
Choose a motor with the right capacity rather than selecting based on price alone.

How frequently will it operate?
A private house with a few operations per day has different requirements from an apartment entrance or commercial property operating continuously.

Do you need only remote control or smart control too?
If remote operation is enough, a conventional RF receiver may suffice. If you want phone-based access, look for a compatible Wi-Fi or smart-home system.

What is included in the quotation?
Ask for a written breakdown of the motor, rack, remotes, receiver, photocells, flashing light, installation, GST, and electrical work.

Frequently Asked Questions

Which gate motor is suitable for a 500 kg sliding gate?

The FAAC 740 E Z16 is specified for sliding gates up to 500 kg. STANSV’s 250W DC motor is specified for up to 600 kg, while the Nice Robus 400 is specified for up to 400 kg. Actual motor selection should also account for gate condition, length, operating frequency, and installation geometry.

Does a gate motor come with a remote?

It depends on the product and package. The STANSV 250W model explicitly lists two remote controls as part of its control system. You can buy FAAC and Nice products as complete kits that include remote controls, but confirm the contents of a specific seller’s package before ordering.

How much does an automatic gate motor cost in India?

Current listings vary substantially. The products researched here range from about ₹28,000 for the listed STANSV motor to ₹46,000 for the listed FAAC 740 and ₹40,000–₹70,000 for a Nice Robus 400 listing. Complete installations can cost more once you add accessories, GST, installation, and electrical work.

Can a gate motor work during a power cut?

Some automation systems support battery backup, while others provide a manual release mechanism. The FAAC 740, for example, has a manual release mechanism for opening the gate when the operator cannot run normally. Battery backup availability depends on the particular automation configuration.

Is a 24V gate motor better than a 230V motor?

Voltage alone does not determine whether a gate motor is suitable. A 24V system can offer useful options such as battery backup and electronic control, but the correct choice depends on gate weight, duty cycle, control features, safety equipment, and installation requirements.

Do I need photocells for an automatic gate?

Photocells are an important safety accessory for many automatic gate installations because they can detect an obstruction in the gate’s path. For a vehicle entrance, it is sensible to discuss photocell placement and other safety devices with the installer rather than selecting the motor alone.

---

Conclusion

A gate motor with remote control can significantly simplify the operation of a residential or commercial entrance, but select the motor based on the gate’s weight, mechanical condition, operating frequency, and required control system.

The STANSV 250W DC model stands out in this comparison for its stated 600 kg capacity, Wi-Fi control, and two included remotes. The FAAC 740 E Z16 is specified for gates up to 500 kg and includes an encoder and manual release. The Nice Robus 400 is a 24V option specified for gates up to 400 kg and can be purchased in complete automation configurations with remote controls and safety accessories.

Before placing an order, ask the installer or seller for the complete installed quotation, including the motor, control board, remotes, rack, photocells, electrical work, installation, GST, and any battery backup. That gives a much more useful comparison than looking at the motor price alone.

Credits

tony_duell, ZngZng, MikeRun, S.J. de Waard, Shixart1985, Materialscientist and Garonzi Stefania — Wikimedia Commons, used under the applicable Creative Commons licenses.

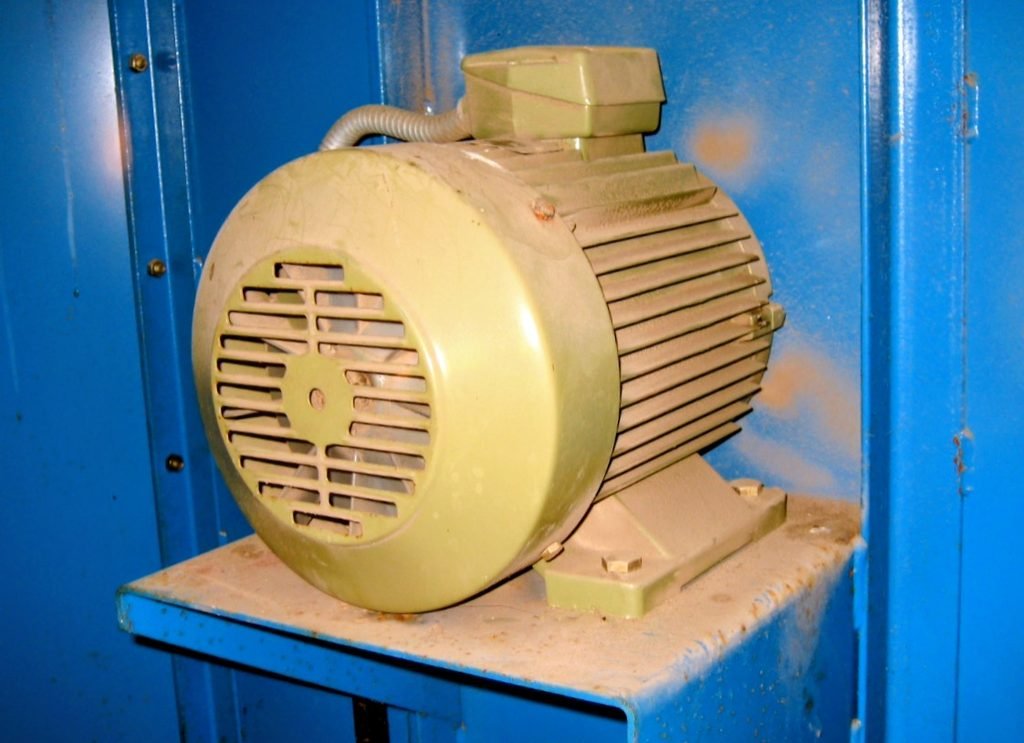

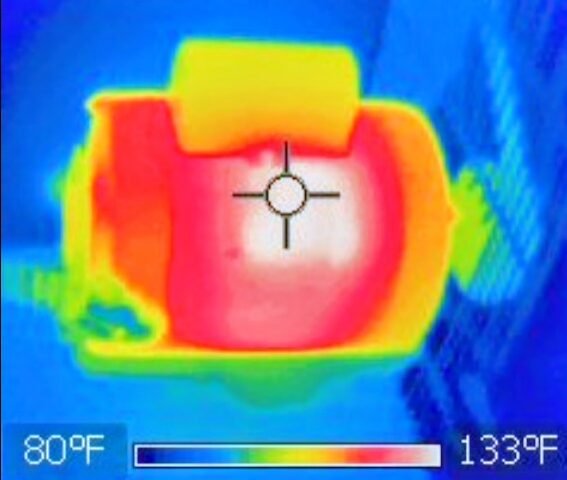

An electric motor can run for hours without trouble only when you manage its heat properly. In many industrial motors, the shaft-mounted cooling fan plays an important role in moving air over the motor body and helping it dissipate heat.

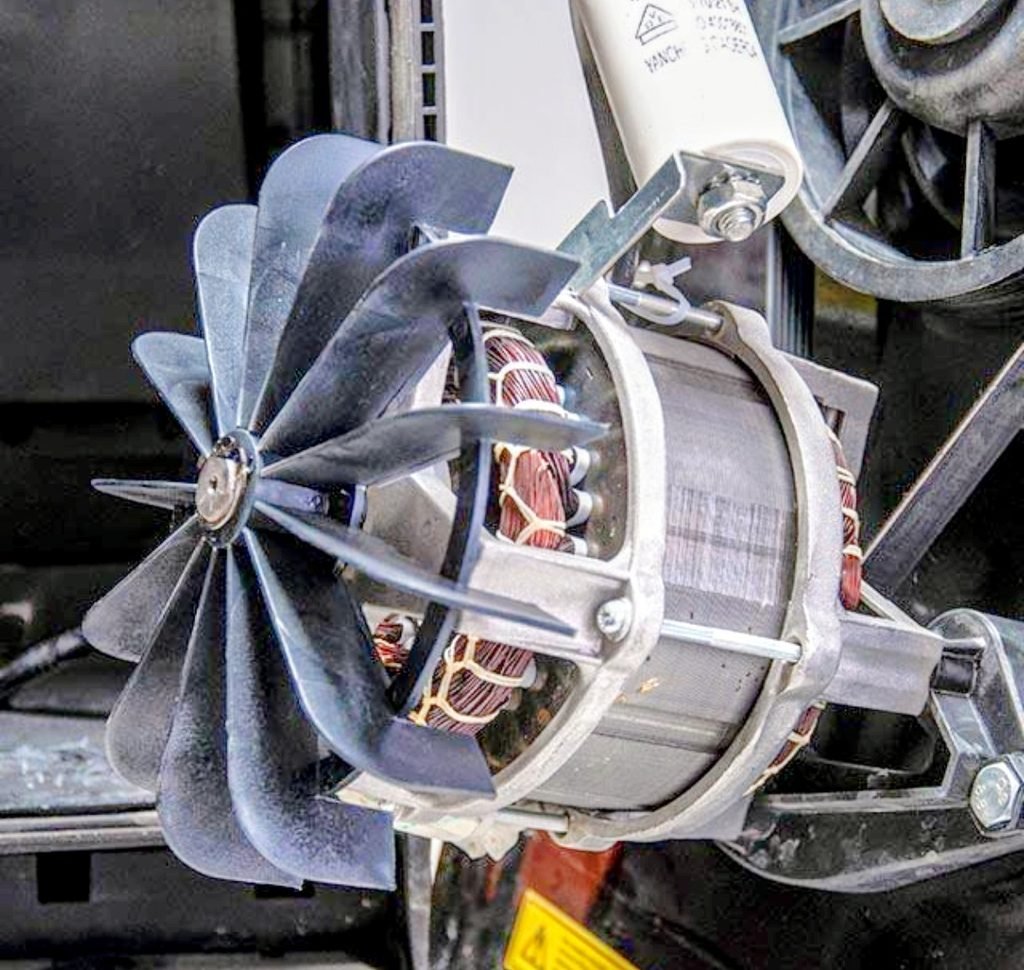

When the original fan becomes cracked, damaged, worn out or otherwise unsuitable, replacing it with the correct motor cooling fan is important. A PVC or plastic motor cooling fan can be a practical replacement for compatible motors because these fans are lightweight and available in many motor-specific sizes.

However, choosing one is not simply a matter of matching the motor’s horsepower. The fan’s inner diameter (ID), outer diameter (OD), motor frame size, mounting arrangement, and shaft/keyway or nut-bolt configuration must also match. This guide looks at five PVC/plastic motor cooling fan options currently listed by Indian suppliers for different motor families and frame sizes.

---

Quick Comparison of PVC Motor Cooling Fans

Product	Compatible motor	Key specification	Material listed	Current listed price
PVC Motor Cooling Fan ND160	Crompton / China motor applications	160 frame, 250 mm fan size, 10 blades	Plastic	₹600
PVC Cooling Fan for CGL ND225	CGL	ND225 frame, 300 mm fan size	Plastic	₹1,999
PVC Cooling Fan for Siemens Motor	Siemens-compatible	20 HP, 44 mm ID, 200 mm OD	Virgin PVC	₹440
PVC Cooling Fan for Marathon Frame 160	Marathon-compatible	Frame 160, 42 mm ID	PVC	₹400
15 HP ABB PVC Motor Cooling Fan	ABB-compatible	15 HP, 235 mm diameter, 40 mm size	Plastic	₹130

---

1. PVC Motor Cooling Fan for 160-Frame Motors

The PVC Motor Cooling Fan for ND160-frame motors is one of the more clearly specified replacement options found during the research.

MSC Kolkata lists a 250 mm fan with 10 blades for a 160-frame motor. The listing identifies it as a shaft-mounted motor cooling fan and gives plastic as the material. It also identifies Crompton as the brand associated with the listing.

The supplier lists the price at approximately ₹600 per piece and a minimum order quantity of 12 pieces. The frame size is particularly useful here. Instead of simply ordering a fan because it is described as a “motor cooling fan”, a buyer can use the motor frame and physical dimensions to narrow down the correct replacement.

This type of fan may be relevant when replacing the cooling fan on a compatible 160-frame motor where the original component has been damaged.

Key details:-

• Motor frame: 160
• Fan size: 250 mm
• Number of blades: 10
• Mounting: Shaft mounted
• Material listed: Plastic
• Brand listed: Crompton
• Listed price: ₹600
• MOQ: 12 pieces

---

2. PVC Cooling Fan for CGL ND225 Frame Motor

For a larger motor, the CGL ND225-frame option listed by MSC Kolkata provides a different size category. The supplier lists this as a PVC cooling fan for a CGL ND225-frame motor, with a 300 mm fan size.

The listing specifies plastic construction, shaft mounting and 415 V AC, with the motor frame identified as ND225. The listed price is ₹1,999 per piece, with a minimum order quantity of six. The price difference compared with smaller motor fans illustrates why it is difficult to quote a single “PVC motor cooling fan price”.

The motor frame, physical dimensions, and specific replacement design can have a major effect on price. For a replacement, check the ND225 frame designation against the motor nameplate and the physical fan before ordering.

Key details:-

• Motor/frame: CGL ND225
• Fan size: 300 mm
• Material listed: Plastic
• Mounting: Shaft mounted
• Voltage listed: 415 V AC
• Type: PVC cooling fan
• Listed price: ₹1,999
• MOQ: 6 pieces

---

3. PVC Cooling Fan for Siemens Motor

Machinery & Spareparts Centre lists a PVC cooling fan specifically for a Siemens motor, with considerably more dimensional information than many generic marketplace listings.

The listed version is described as a 20 HP PVC cooling fan, with an inner diameter of 44 mm and an outer diameter of 200 mm. The supplier specifies virgin PVC as the material and lists the current price at ₹440. The ID and OD are particularly important when replacing a shaft-mounted fan.

Two fans can look similar while having different bore dimensions, and the wrong bore can make installation impossible or unsafe. For Siemens-compatible replacement parts, buyers should therefore compare the old fan and motor documentation rather than relying on horsepower alone.

Key details:-

• Motor application: Siemens-compatible
• Motor power listed: 20 HP
• Inner diameter: 44 mm
• Outer diameter: 200 mm
• Material: Virgin PVC
• Listed price: ₹440

---

4. PVC Cooling Fan for Marathon Motor Frame 160

Another frame-specific option is the PVC cooling fan listed for a Marathon motor. Machinery & Spareparts Centre lists a PVC cooling fan for a Marathon motor with frame 160, specifying a 42 mm inner diameter.

The current listed price is ₹400, compared with an earlier displayed price of ₹600 on the same product page. The listing is a useful example of why the motor frame and bore need to be checked together.

A frame number alone may not be enough when different mounting or shaft arrangements exist. The supplier also lists other Marathon cooling-fan products, including aluminium versions, showing that material selection can vary by application and motor requirements.

Key details:-

• Motor brand/application: Marathon
• Motor frame: 160
• Inner diameter: 42 mm
• Material: PVC
• Listed price: ₹400

---

5. 15 HP ABB PVC Motor Cooling Fan

For ABB-compatible applications, Aggarwal Moulding Works lists a 15 HP ABB PVC Motor Cooling Fan under its motor cooling fan range. The listing gives a 235 mm diameter, 40 mm size, circular shape and plastic construction.

The supplier lists the product at ₹130 per piece, with a minimum order quantity of 50 pieces. There is an important terminology point here. Although the product title calls it a PVC motor cooling fan, the detailed specification identifies the material simply as plastic.

If the material itself matters, it would be better for a buyer to confirm the exact polymer specification with the supplier. The supplier also lists an ABB M2BAX-type cooling fan variant separately. ABB’s own documentation confirms that the M2BAX is an IEC low-voltage motor family covering a wide range of frame sizes, so matching the exact motor frame remains important rather than assuming that every M2BAX motor uses the same fan.

Key details:-

• Motor application: ABB-compatible
• Power listed: 15 HP
• Diameter: 235 mm
• Size/bore listed: 40 mm
• Material listed: Plastic
• Shape: Circular
• Listed price: ₹130
• MOQ: 50 pieces

---

PVC vs Plastic: Why the Listing Can Be Confusing?

Buyers should pay attention to this. Indian motor-spares suppliers frequently use terms such as PVC motor cooling fan, plastic cooling fan and virgin plastic cooling fan in product titles. However, the detailed specification can identify the material differently.

For example, the Siemens listing explicitly specifies virgin PVC, while the ABB listing uses “PVC” in the product name but says “Plastic” in its specification.

Another supplier’s Crompton fan is specified as polypropylene. If the material matters for temperature, mechanical strength, or a particular industrial environment, ask the supplier to confirm the exact material before placing the order.

---

Things to Check Before Buying a PVC Motor Cooling Fan

1. Motor frame size

The frame designation is one of the easiest ways to narrow down the correct replacement. Examples from current listings include 160- and ND225-frame applications. Do not assume that a fan for one 160-frame motor will automatically fit every 160-frame motor.

2. Inner diameter or bore

The bore must match the motor shaft or mounting arrangement. The Siemens listing, for example, specifies a 44 mm ID, while the Marathon frame-160 listing specifies a 42 mm ID. Even a small dimensional mismatch can prevent correct installation.

3. Outer diameter

OD affects the physical clearance between the fan and surrounding components. The Siemens fan is listed at 200 mm OD, while the CGL ND225 version is listed with a 300 mm fan size.

4. Mounting arrangement

Check whether the fan is designed for a shaft, keyway, pin or nut-and-bolt arrangement. Suppliers themselves ask buyers for this information when identifying replacement fans.

5. Number of blades

Blade count helps identify a replacement, but it should not be the only selection criterion. The Crompton/ND160 listing, for example, specifies 10 blades, while other motor-specific fans have different blade configurations.

6. Motor manufacturer and model

If the motor is from Crompton, Siemens, ABB, Kirloskar, Marathon or another manufacturer, provide the supplier with the exact motor details. For ABB motors in particular, the M2BAX family spans numerous frame sizes and configurations.

---

How to Choose the Right Motor Cooling Fan

The safest approach is to treat the cooling fan as a motor-specific spare part, not a generic fan.

Before ordering, note down:-

• Motor manufacturer
• Motor model/type
• Motor frame size
• Motor horsepower or kW
• Fan inner diameter
• Fan outer diameter
• Fan thickness

If relevant,

• Number of blades
• Mounting method
• Keyway dimensions

If applicable,

• Original fan photograph

A clear photograph of the old fan, along with measurements of the bore and outside diameter, can make supplier identification much easier.
For replacement work, it is also useful to compare the original fan with the proposed replacement before removing or discarding the old component.

---

Common Applications

PVC and plastic motor cooling fans are used as replacement components in a variety of electric-motor applications.

Supplier listings cover motors used with:-

• Industrial machinery
• Motor-pump assemblies
• Pumps
• Compressors
• General-purpose electric motors
• Industrial equipment
• Manufacturing machinery

Exact suitability depends on the motor design and the replacement fan’s dimensions, not just the application name.

---

Frequently Asked Questions

What is a PVC cooling fan for an electric motor?

It is a fan mounted on or associated with an electric motor’s shaft and used to move air around the motor for cooling. Replacement versions are available in PVC and other plastic materials, depending on the manufacturer and supplier.

How much does a PVC motor cooling fan cost in India?

There is no single fixed price. The researched listings in this guide range from ₹130 to ₹1,999, depending on motor compatibility, dimensions and supplier. Some are sold with minimum order quantities, so the effective purchase cost can differ from the displayed single-piece price.

Can I use any PVC fan if the motor horsepower is the same?

No. Horsepower alone is not enough. The fan’s bore, outside diameter, motor frame, mounting arrangement and physical clearance should also match.

What information should I give a supplier when buying a replacement?

Give the supplier the motor brand, model, frame size, horsepower, fan ID and OD, mounting type and a photograph of the existing fan. These details make it easier to identify the correct replacement.

Are PVC and plastic motor cooling fans the same?

Not necessarily. Some Indian listings use “PVC” in the product title but describe the material only as plastic or virgin plastic in the specifications. If the exact polymer is important, confirm it with the supplier before ordering.

Are these fans available for large industrial motors?

Yes. Indian suppliers list motor cooling fans for a wide range of motor frames and power ratings, including larger Siemens-, ABB-, Crompton-, and Kirloskar-compatible applications. ABB’s M2BAX documentation itself covers motor frame sizes from 71 through 355.

---

Conclusion

A PVC cooling fan may look like a simple motor spare, but getting the correct one requires more than matching the horsepower printed on the motor nameplate. The most useful specifications to check are the motor frame, fan ID, OD, mounting arrangement, material and motor compatibility.

The five products covered here show how much these specifications can vary: from a 160-frame fan to an ND225-frame CGL fan, and from a 42 mm Marathon bore to a 44 mm Siemens bore. Current Indian listings also show wide price variation.

The five researched examples range from ₹130 to ₹1,999, but treat these as reference prices rather than fixed market rates.

If you are replacing an existing fan, the practical approach is simple:

• measure the old fan
• the motor frame
• mounting arrangement
• and confirm the dimensions with the supplier before ordering.

That small check can prevent an otherwise inexpensive replacement from turning into the wrong spare part.

Image Credits – Givememyusername, tony_duell, ZngZng, MikeRun, S.J. de Waard, Shixart1985, MaterialScientist and Garonzi Stefania – Wikipedia Commons licenses
